A clean hole is the anchor's first job.

Ramset and Hilti both make hole cleaning a mandatory step. Our vacuum nozzles seat straight into an 8 to 16mm masonry hole and pull the drilling dust out through your site vac, so resin bonds to concrete and sleeve anchors seat to full depth. Printed to order in NSW.

Shop nozzles and kits Which size do I need?
Clip on, push in, dust gone.

Pick the hole size. Each one links to the anchors that go in it.

Start with your vacuum

See everything
Milwaukee M188, 10, 12, 14mm and 16mm nozzles plus 3 piece kits DeWalt 35mm8, 10, 12, 14mm nozzles plus 3 piece kits Bosch GAS 358, 10, 12, 14mm nozzles plus 3 piece kits Ryobi RVC8, 10, 12, 14mm nozzles plus 3 piece kits

Every nozzle is printed for one hose fitment, so pick the vac first, then the size. Different vac? Send us the model and we will tell you if we can print one.

Kits built around the job

All kits, $24.99 each

Why dust fails anchors

Drilling leaves the hole wall coated in fine dust. Inject resin onto that and it bonds to the dust, not the concrete. A screw-in or sleeve anchor drives onto the same dust and stops short of full embedment. Either way the anchor can let go well under its rated load.

Every anchor manufacturer we checked accepts vacuum extraction as a cleaning method. A blow pump pushes silica dust into your breathing zone. A vac takes it off site.

Read the hole cleaning guide

The sequence

  1. Drill to depth

    Diameter and embedment straight from the anchor data sheet, plus a little extra for debris.

  2. Vacuum

    Seat the matching nozzle in the hole and pull the loose dust out.

  3. Brush

    A stiff wire or nylon brush sized to the hole lifts the compacted dust off the wall.

  4. Vacuum again

    Remove what the brush loosened. Repeat as the manufacturer specifies, then set the anchor.

Single nozzles

All sizes and fitments

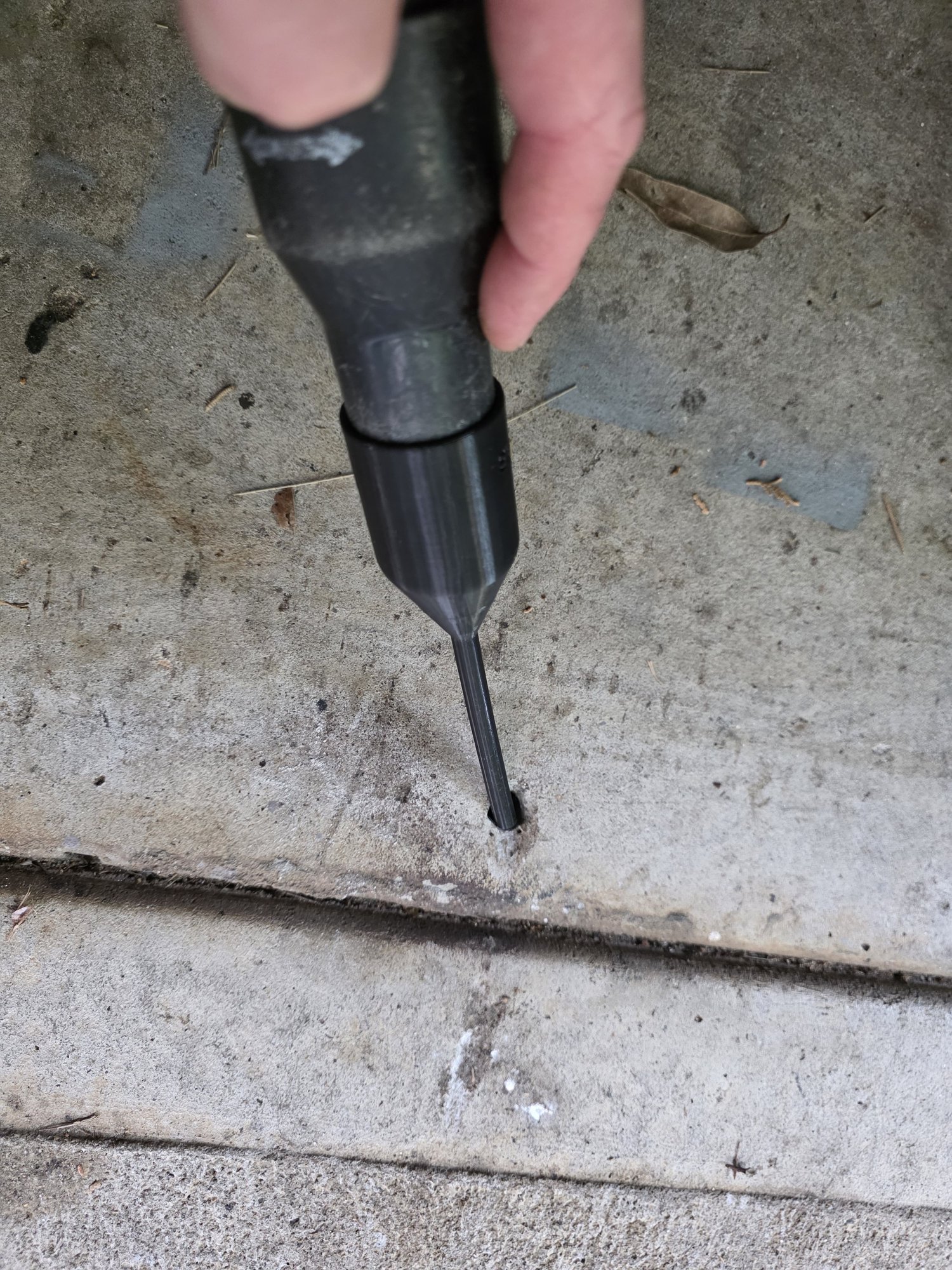

8mm Drill Hole Dust Extractor - Suits Milwaukee M18 Vacuums
Fits Milwaukee M18 vacuums

8mm nozzle

$5.99

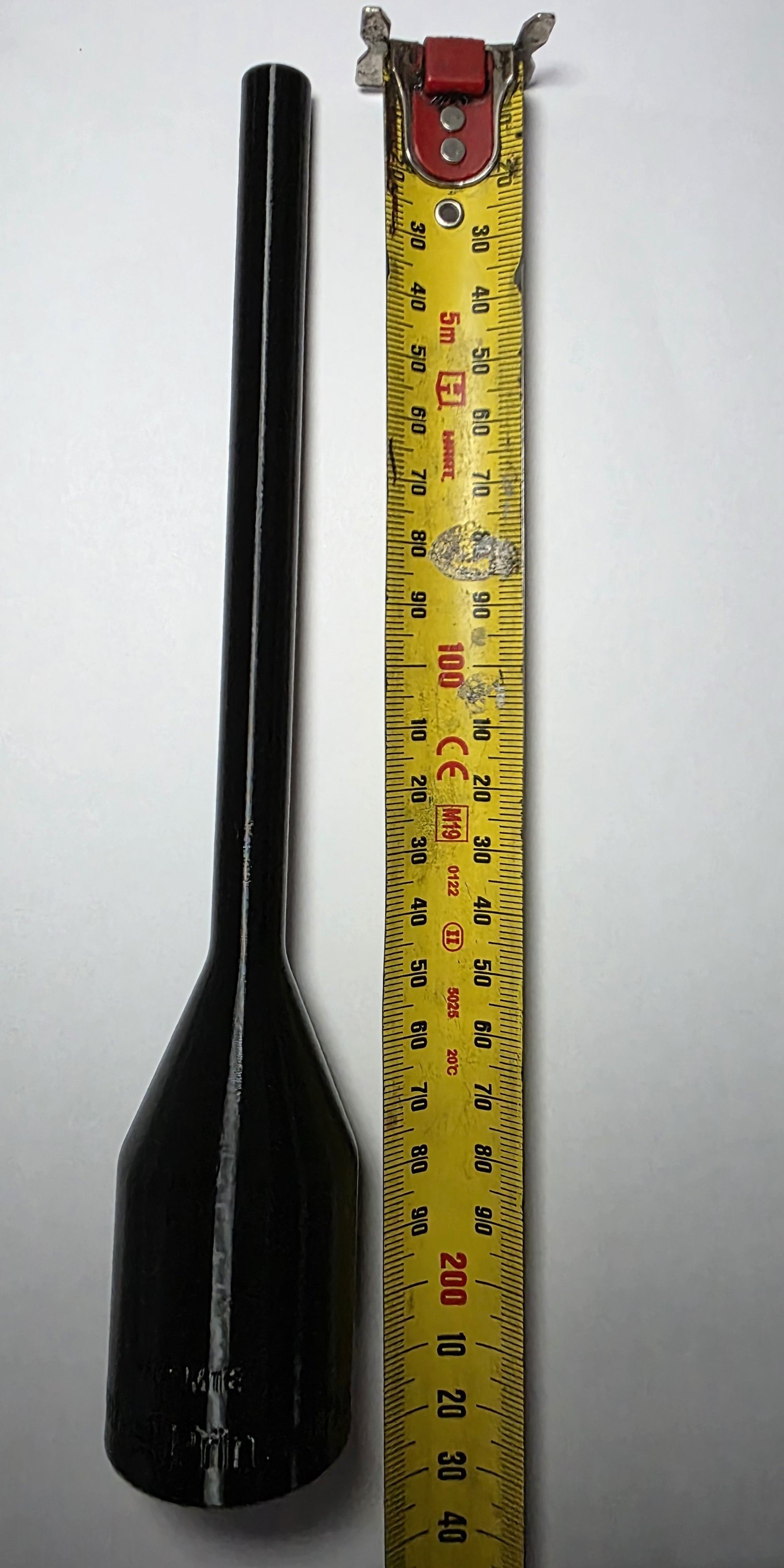

10mm Drill Hole Dust Extractor - Suits Milwaukee M18 Vacuums
Fits Milwaukee M18 vacuums

10mm nozzle

$7.99
12mm Drill Hole Dust Extractor - Suits Milwaukee M18 Vacuums
Fits Milwaukee M18 vacuums

12mm nozzle

$9.99

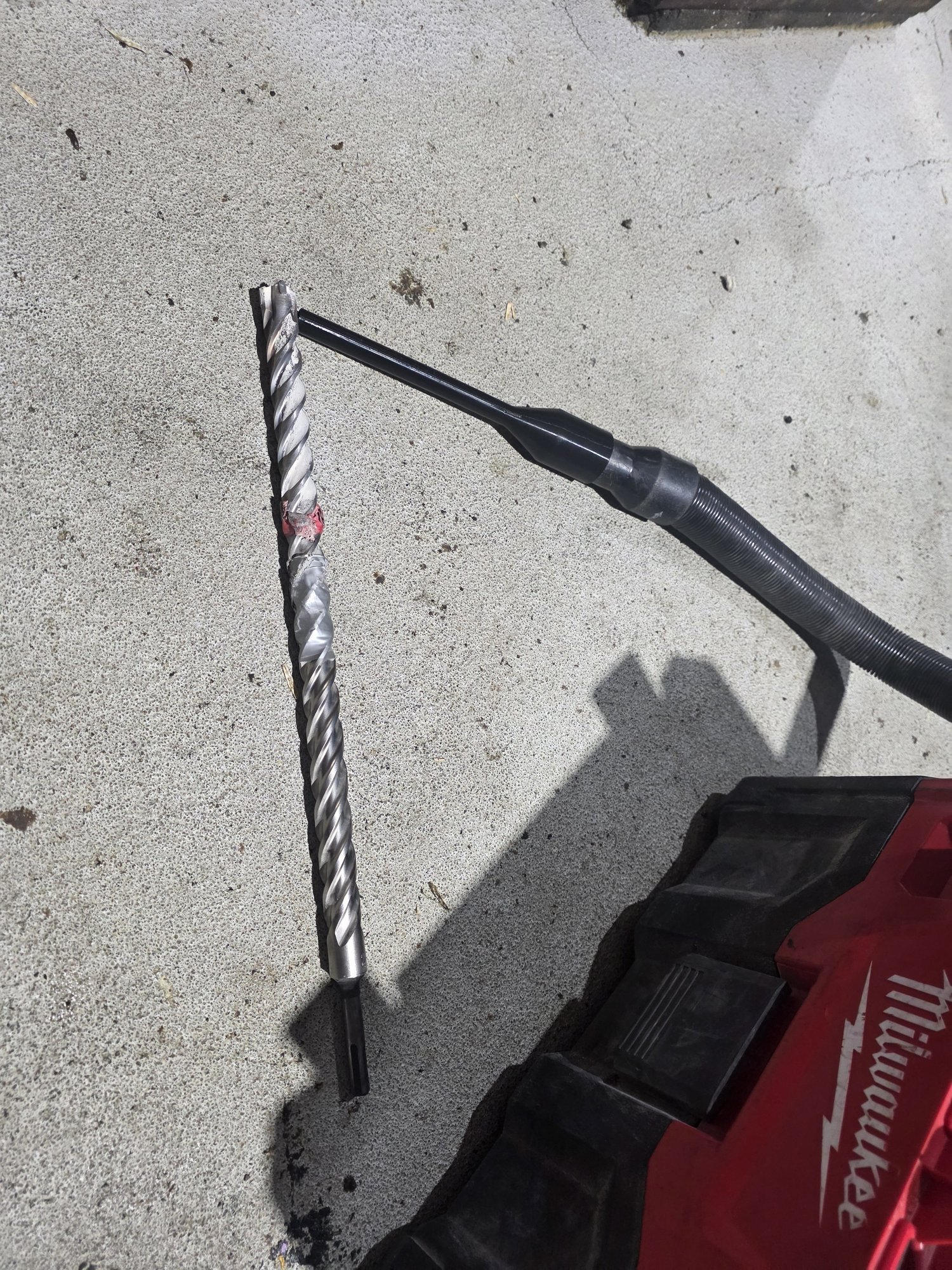

14mm Drill Hole Dust Extractor - Suits Milwaukee M18 Vacuums
Fits Milwaukee M18 vacuums

14mm nozzle

$11.99

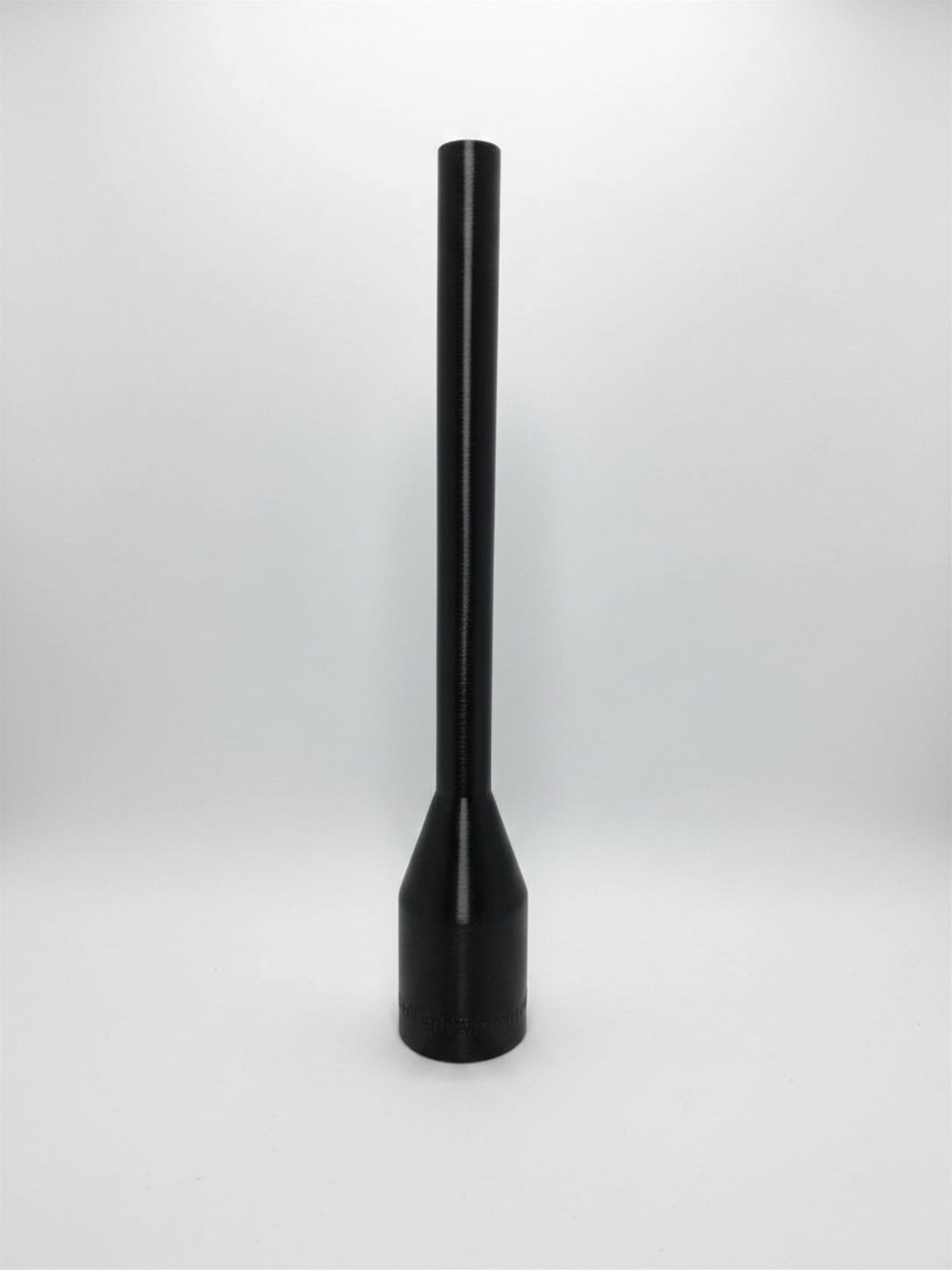

16mm Drill Hole Dust Extractor - Suits Milwaukee M18 Vacuums
Fits Milwaukee M18 vacuums

16mm nozzle

$11.99

Custom 3D printing

Upload an STL, OBJ, STEP or 3MF and get a price straight away. PLA, PETG, ASA, ABS, TPU and carbon or glass filled nylons, single or multi colour. Every file is checked by hand before it prints and nothing is charged until you approve the final price.

Get an instant quote

Bulk and trade orders

Fitting out a crew, stocking a counter or need a nozzle size or fitment we do not list? We print to order, so odd sizes and quantities are not a problem. Tell us the vac, the hole sizes and the numbers.

Bulk order details

Also in the range: GME to Quad Lock adapter for GME UHF handsets.
